Building A Drone Like Producing Nutella™
Nutella has one of the most globalised and complex supply chains in the world. Is the Iranian Shahed's, a distant second?
Guarding the Great Wall: A Moped in The Sky
Anushka Saxena
The US-Israel war on Iran, starting February 28, 2026, and spilling over both in terms of geographic scope and intended outcomes, has spotlighted, among other crucial aspects, Tehran’s attritional capabilities against a much-too superior adversary. Its use of uncrewed aerial systems, or ‘drones’, in this regard, has emerged as key in both, explaining Tehran’s strategy, and epitomising the revolution in the global means and methods of warfighting in an era of network-centric, beyond-visual-range, and asymmetric warfare. There are three main conclusions I draw from Iran’s strategy of using its Shaheds:
The Shahed is representative of the accessible proliferation of precision strike capability. Iran has been able to engineer a low-cost UAV and produce it en masse. This UAV has been able to perform nearly as well as much more expensive systems. The Shahed challenges traditional cost-benefit calculations in air defence and enables sustained attritional campaigns against more powerful adversaries.
Drone technology diffusion is accelerating. Many realities, ranging from Russia’s domestic Shahed production and the US’s production of LUCAS copies of Shahed, to the transfer of drone technology to and from China as a hub, and proliferation to non-state actors, are pointing to a global drone arms race underway. The Shahed template is now being adopted, reverse-engineered, and exported globally to reshape military calculus akin to Iran in its 2026 war with the US and Israel.
Global sanctions have failed to constrain Shahed’s supply lines. Despite being heavily sanctioned, Iran has built a fully operational Shahed ecosystem using 80 per cent American components sourced through shell companies, Chinese re-export hubs, and exploiting dual-use trade loopholes. Tehran epitomises why turnkey equipment sanctions fail to address component-level free flow.
Most of Iran’s target strikes in West Asia so far have deployed a combination of surveillance and reconnaissance, combat, and attack drones. Notable incidents of Tehran’s drone use between February 28, and April 8, when a temporary ceasefire was announced, are as follows:1
On March 1, a Shahed-type drone struck RAF Akrotiri in Cyprus, hitting a hangar, and leading to the partial evacuation of stationed troops. RAF Akrotiri is a British sovereign base on a NATO country’s territory – roughly 1,700 km from Iran’s western launch areas. On the same day, Iranian drones also struck Camp Buehring – a major US training and logistical base in Kuwait – damaging US Chinook helicopters and causing the fatalities of 6 soldiers, as well as the French Navy’s Al Salam Base (Camp De La Paix) in the UAE, but no casualties were reported.
In Bahrain in particular, on February 28, and then on March 8 and 9, three major sites were targeted by Iranian drones – first, the US Navy’s Fifth Fleet HQ in Manama, then a water desalination plant (which sustained damage), and finally, a petroleum oil refinery operated by BAPCO (which caught fire, and declared force majeure). In terms of commercial activity, too, the activities of Amazon Web Services Bahrain were disrupted twice by Iranian drone strikes, as a result of which, on March 23, Amazon announced that it is planning to shift operations out.
Iranian drones hit a fuel depot at one of the busiest airports in the world – the Dubai International (DXB) – on March 16, causing a massive fire and a halting of flights and operations. Two days before the same, in Al Kharj, Saudi Arabia, on March 14, an Iranian drone strike destroyed at least 5 US refuelling aircraft based at the Prince Sultan Air Base.
Most notably, Iran did not build these capabilities on its own. There is an important China angle to consider in how it was able to develop the Shahed, power it, and eventually help it navigate to its targets.
For more on this, you can directly navigate to section: A Global Web of Components and Supply Lines
Types of Shahed

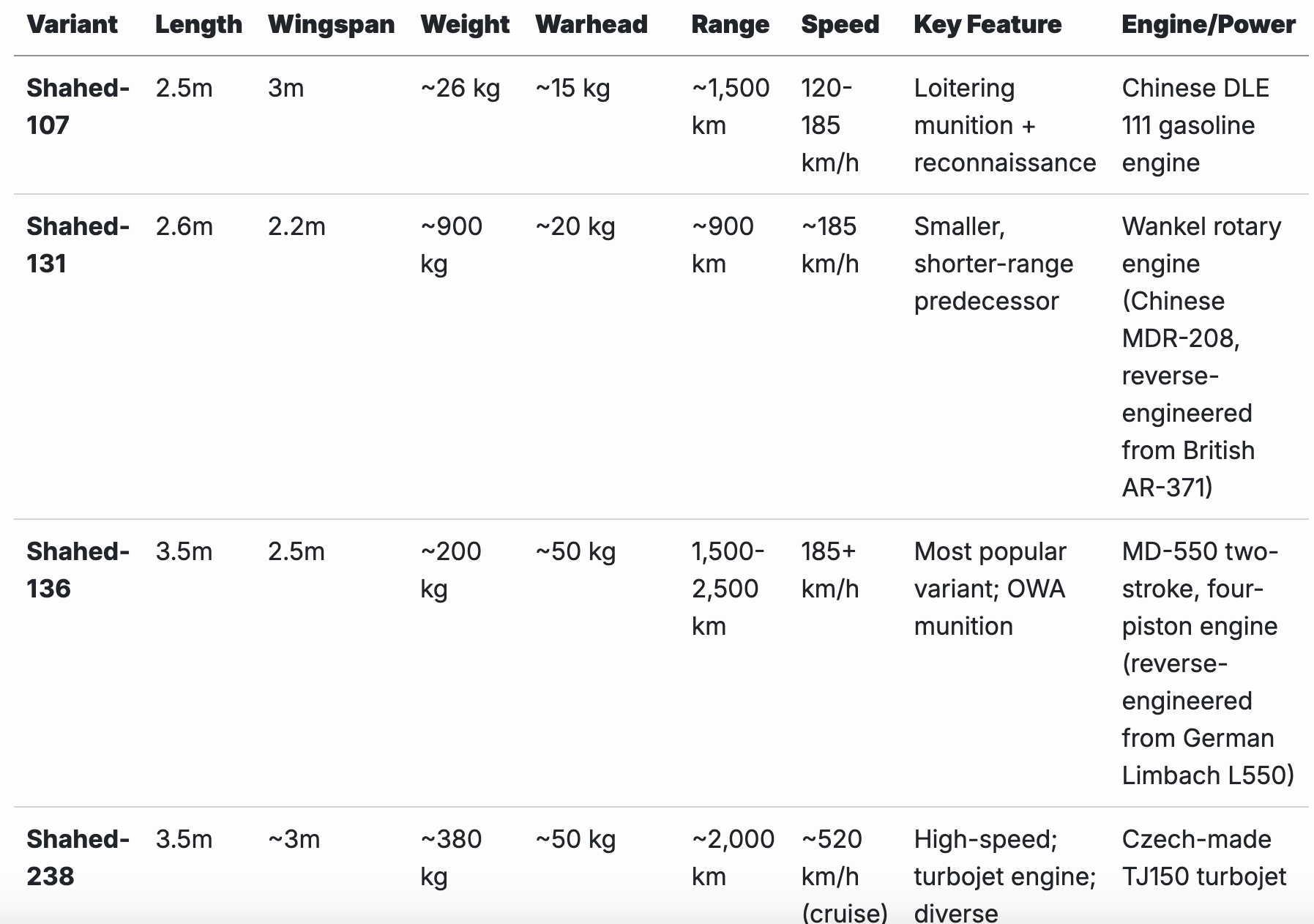

‘Shahed’ is a class or family of propeller-driven cruise missiles, designed to be OWA munitions that fly toward pre-programmed coordinates using satellite navigation and inertial sensors (See Table 1). They cost anywhere between US$ 20,000 and US$ 50,000 to produce, with some export variants sold to Russia (and renamed the ‘Geran’ class) likely2 costing around US$ 80,000. The export price ranges3 from US$ 100,000 to US$ 290,000. In principle, they should be irrecoverable as they are expected to explode upon reaching target, but their fuselages and internal components have often been recovered in whole or part, especially from the Ukrainian battleground since 2022, but also from Iraq following the Baghdad clashes in 2021, and the UAV attack on Kurds in northern Iraq in 2022, which was publicly claimed by Tehran. This has enabled4 the US not only to study their make and model but also to replicate them in the form of the US Central Command’s own Low-Cost Uncrewed Combat Attack System (or ‘LUCAS’) drone.
In addition to the benefits of cost, design philosophy, and attrition capabilities, the Shaheds’ launch profile adds to these advantages. This is because the IRGC can fire them from portable rails or racks on trucks, with a small pulse rocket booster on the bottom,5 which first pushes the drone to attain cruise speed, and is subsequently jettisoned. The portability of the launch frame and drone assembly enables the entire system to be mounted on the back of any civilian or military truck. Hence, the ‘Rocket-Assisted Take Off’ (RATO) provides the necessary energy for take-off, while the rail-mounted trucks can recede post-launch and remain mobile or underground, providing a significant edge in launch stealth over missile battery systems that are relatively immobile.
Their Production Lifecycle
There are three main players in the production and consumption lifecycle of a Shahed done in Iran. Firstly, there are the state-owned designers and producers. The backbone of this infrastructure is comprised of HESA and Qods Aviation Industries (QAI). HESA, based in Isfahan, is responsible for the Ababil series and the assembly of the Shahed-136, while QAI manages the Mohajer-6 and other surveillance-heavy platforms. Vitally, the IRGC Aerospace Force operates its own industrial arm, Shahed Aviation Industries, which is credited with designing the delta-winged Shahed series.
These official entities have been engaged with drone-related research and development since the 1980s, when Iran first began using UAVs, starting with the war with Iraq in 1985. Tehran’s losses against the US Navy during Operation Praying Mantis22 of 1988 particularly catalysed their focus on asymmetric capabilities. Subsequently, Iran captured a US RQ-170 ‘Sentinel’ in 2011 and began building its internal UAS production ecosystem. Based on estimates, Iran has, since February 28, used over23 2,000 Shahed drones in its strikes across West Asia. Tehran possesses a stockpile of about 80,000 ready-to-deploy Shaheds, with a daily production capacity of 400 drones.24 As for the Russia-based assembly and production, Ukrainian estimates25 suggest a capacity of up to 5,000 Shaheds per month.
Herein came the role of the second important actor – private companies and IRGC-affiliated individuals. One, for example, is the Mado Company,26 established in 2013 and specialising in reverse-engineering and manufacturing drone engines, drawing inspiration from Western and Asian designs. Then, there are individuals on the board of IRGC’s financial arm, the ‘Cooperative Foundation/ Bonyad Taavon Sepah’, as well as the banks (Ansar and Mehr) and conglomerates (Khatam al-Anbiya Construction and Etemad-e-Mobin) associated with it. Bonyad is widely sanctioned27 by the West, but it continues to identify and finance individuals and companies that can form knowledge bases for the Shahed’s manufacturing process. A classic example28 is the private R&D firm, Paravar Pars Company, which enabled the design and production of one of the first iterations of the Shahed, the 171, as inspired by the ‘Sentinel’.
Emerging from the Shahed manufacturing facility in Russia are investigative reports29 that explain the process and structure. The factory is divided into several specialised departments. The metal shaping department is where the carbon fiber or fiber-glass webs are first cut. These are then moved to the bonding department, where the fuselage and wing shells are formed. Once the airframe is cured and painted, it moves to the final assembly line. Here, the electronics suite, fuel system, mechanical actuators for the control surfaces, and engine are integrated. The final stage is the installation of the warhead, which is located in the nose, just behind the aerodynamic cone.
Thirdly, there are the import destinations and consumers of Iran’s Shaheds, which ultimately fund a complex lifecycle and supply chain (See Table 2). Tehran has transferred drone technology to Russia and China, as well as IRGC-backed groupings such as Hezbollah, Houthis, and Iraqi militias. Beyond the Shahed, Venezuela30 has been assembling the Mohajer-2 (branded as the ANSU-100) and the QAI Mohajer-6 since the mid-2000s, while Ethiopia and Sudan have used Iranian drones to strike rebel groups. Tajikistan31 also hosts a dedicated Ababil-2 production facility inaugurated by Iran in 2022. Thus, close integration among military recipients, the Iranian government, and manufacturers has enabled the mobilisation of lessons from many operational use cases and, ultimately, the rapid evolution of the Shahed class.
A Global Web of Components and Supply Lines
Despite being one of the most sanctioned countries on Earth, Iran has built the Shaheds using a globalised supply chain of commercially available, dual-use components.
Pathways of Integration
These components are brought into an Iranian Shahed’s supply chain and life cycle through four primary pathways, or a parallel combination thereof:
Shell/Front Companies: This is the best-documented route. In one case32 unsealed by the US Department of Justice, two Iranian nationals running the company Rah Roshd falsely purported to represent companies based in the UAE and Belgium, using a spoofed e-mail address containing a misspelt version of a legitimate company’s name to procure US-made servo motors and electronic components. They used at least three shell companies based in the UAE to pay a China-based company, with payments processed through US-based correspondent bank accounts. Similar companies have since sprung up in Hong Kong and Turkey as well. In this light, the US Treasury designated,33 in November 2025, as many as 32 individuals and entities across Iran, the UAE, Turkey, China, Hong Kong, India, Germany, and Ukraine to disrupt Tehran’s “Transnational Missile and UAV Procurement Networks.”
Chinese Distributors and Re-Export Hubs: While many parts originate in the US, Europe, and Japan, procurement networks frequently34 route them through Chinese distributors or trading companies before they reach Iranian manufacturers. In this light, in February 2025, the US Treasury sanctioned35 six companies based in Hong Kong and China for their involvement in procuring components for Tehran’s drone and ballistic missile programmes, that too, on behalf of another Office of Foreign Assets Control-designated Iran-based firm – the Pishtazan Kavosh Gostar Boshra (PKGB).
Exploiting dual-use ambiguity and commercial availability: This is the most structurally difficult pathway to stop, as most of Shahed’s components are commercially available off-the-shelf. Electronics, for example, that are sold globally for civilian applications, by say, Texas Instruments or Winbond. Further, of the roughly 50 different types36 of German Infineon transistors that power Shaheds, many, such as the IPB031N08N5,37 are available for sale on eBay for as little as US$ 20.38 Other common circumvention techniques include mislabelling goods or providing incorrect end-user details. This was the case, per an investigation by the Australian Government’s Department of Foreign Affairs and Trade, on a satellite navigation antenna found in a Shahed, which was labelled “Agricultural equipment parts” in Chinese and English.39
Direct state-level technology transfer and reverse engineering: This is the pathway that builds the highest-quality indigenous capability but has the longest risk-reward runway. In terms40 of direct ToT, China gave Iran access to its BeiDou satellite navigation system in 2021, while Russia transferred drone technology and production know-how to Iran. On the reverse-engineering front, Mado company has produced its own engines based on British and German ones, while many American and Israeli drones, such as the Boeing ScanEagle,41 the RQ-170 ‘Sentinel’,42 and likely also the IAI ‘Harpy’,43 have been captured, studied, and replicated in part by Tehran since 2011.
Case Findings
An internal document leaked from the Alabuga Special Economic Zone near Yelabuga, Tatarstan, Russia’s main Shahed-manufacturing facility, revealed that approximately 140 electronic and connector components are used in each Shahed-136, with about 80 per cent44 of those originating from American manufacturers. Then, a Ukrainian intelligence teardown of a captured drone, as made public by CNN,45 found that 40 out of 52 components were made by 13 different American companies. These included Texas Instruments microcontrollers, voltage regulators, and digital signal processors; a Hemisphere GNSS GPS module for Position-Navigation-Timing (PNT); NXP microprocessors; and components from Analog Devices and Onsemi.
Further, another analysis from the ‘Trap Aggressor’ project, in partnership with the Ukraine-based ‘Independent Anti-Corruption Commission’ (NAKO),46 found that Servo drives came from American Hitec USA Group, batteries from Japanese Panasonic, ceramic chip antennas from Canadian Tallysman, the power supply board made from German and Chinese components (the former included the ‘Infineon’ transistors, while the latter included voltage regulators), and the control unit was produced by Russian plant Zapadpribor.47
Servo drives/ motors function as control systems that manage48 a drone’s rotational speed, the force it produces, and its direction. For drone applications, these components are fundamental to achieving the precision required for flight operations. A servo drive continuously monitors the motor’s current state and makes real-time adjustments to match the desired output. In drones, this means the drive receives commands about where a motor should spin or how fast it should turn, checks the actual performance, and corrects any deviation.
Most importantly, the 136 is powered by the MD-550 two-stroke, four-piston engine, reverse-engineered from the German-designed Limbach L550 motor. The technology was reportedly14 obtained by Iran when it captured a German-made LIMBACH FLUGMOTOREN L-550 aircraft engine in 2006. The MD-550 is more fuel-efficient than a rotary engine, is air-cooled and drives a two-bladed propeller, and creates a buzzing sound, earning15 it the nickname, “the Moped,” from the Ukrainians. The Russian Garpiya A1 Kamikaze drone, which Moscow has created for itself as an alternative to reduce dependence on the ‘Gerans’, also uses a similar four-cylinder, two-stroke piston engine, reportedly16 manufactured in and/ or resold by China’s Micropilot. The firm may have either purchased the technology from the Iranians, or adopted17 it from the Xiamen-Limbach manufacturing facility in Fujian.

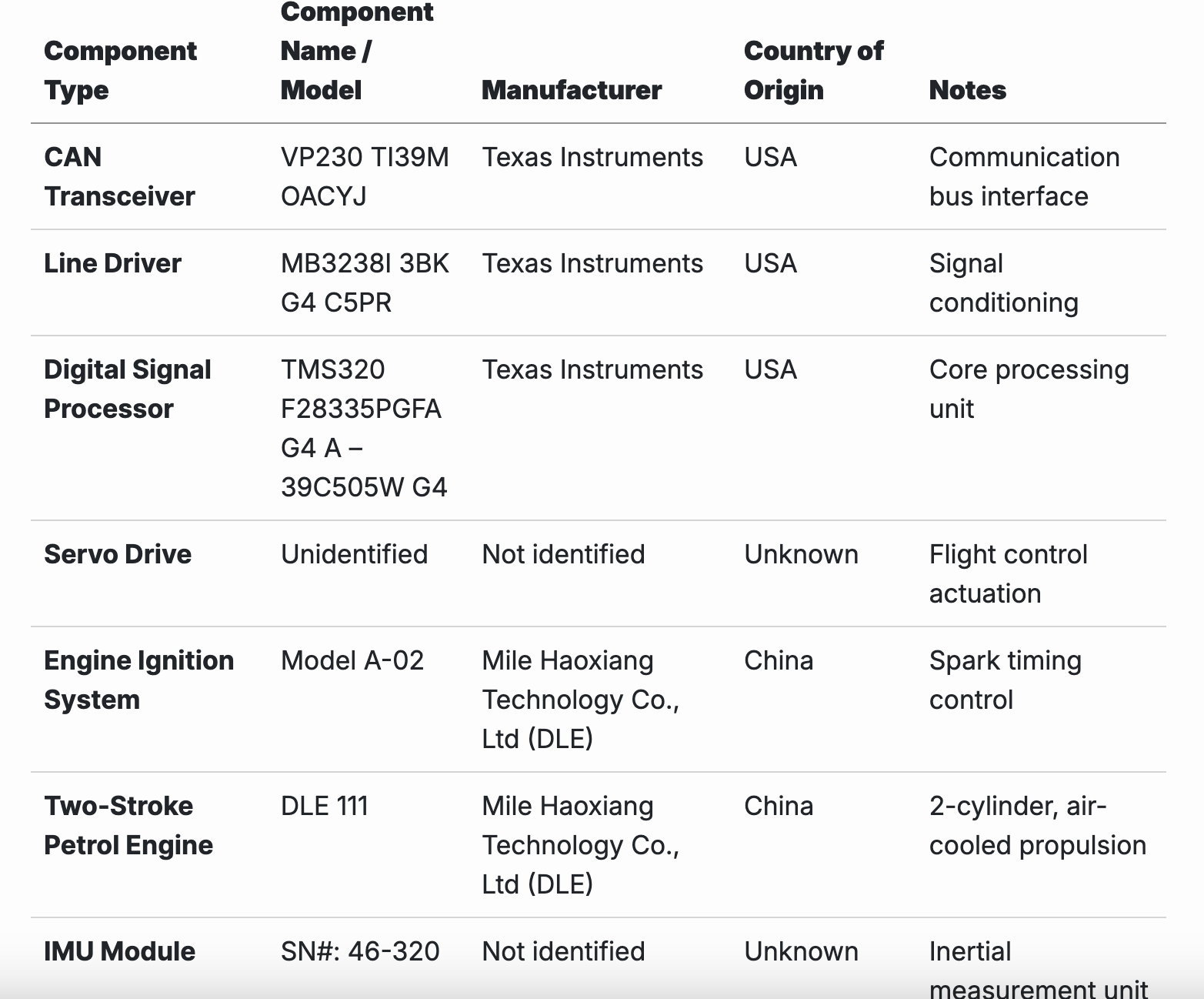

Most interestingly, the breakdown conducted by the ‘War Sanctions’49 project of the Ukrainian Defence Ministry’s Main Directorate of Intelligence on a Shahed-107 (See Table 3), reveals a diverse set of components from across the globe. In terms of microcontrollers, the 107 possesses two – one from the China-based manufacturer GigaDevice, and another from Switzerland’s STMicroelectronics. Also coming from China and Switzerland, respectively, are the Toggle Switch from Zhejiang Renew Electronics and the GNSS module from U-Blox. From the US-based Analog Devices come four other components – a low-noise, 3-axis MEMS accelerometer (which is a specialised sensor designed for high-precision vibration, tilt, and inertial sensing), two Radio-Frequency transceivers, and a buck regulator (needed to power critical electronics like flight controllers, receivers, cameras, and GPS modules). Japan and Taiwan’s manufacturers, Murata and Winbond Electronics, respectively, contribute an electromagnetic filter and a flash memory (for storing essential, permanent data on board). Both the DLE 111 engine, and its ignition system (model A-02), came from China’s Mile Haoxiang Technology Co. Ltd.
These are just a few of the many diverse components identified by the Directorate in the 107. In terms of the findings from Shahed-136, most memory chips, RF transceivers, digital signal processors and microcircuits come from either Texas Instruments, Xilinx Inc. (AMD), or Analog Devices’ ‘Maxim Integrated Products’ – all US-based firms. The project also informed50 most recently, and perhaps most strikingly, that an Nvidia Jetson Orin Nano Developer Kit was found inside the 136’s MS001 variant (See Table 4). It is an AI-based computer module capable of performing 67 trillion operations per second, and is commercially available for a price of US$ 249.51
While the Jetson Orin is capable of providing “machine vision” by allowing the drone to make decisions based on a pre-loaded, live feed processed using AI/ML, as editions of the 136/Geran-2 have evolved, the Russian series ‘E’ has shifted from a fire-and-forget to a remotely piloted drone. This series hosts another52 critical Chinese component – the TS130C-01 optical camera produced by Chengdu Honpho Technologies. This forward-facing, visible-light camera in the nose transmits a live video feed to an operator, enabling them to take a call on completion of the kill chain.
A New War Reality
The emergence and persistence of the Shahed drone offer vital lessons for India and the broader international community. To begin with, the drone’s success lies not in technological sophistication but in the building of an ecosystem and an economy. At US$ 20,000-50,000 per unit, with reported production capacities of 400 per day in Iran and 5,000 per month in Russia, this platform challenges the traditional logic of air defence.
For India, which faces two potential adversaries with technologically-frontier capabilities and production advantages, the missile defence architecture requires urgent rethinking to tackle saturation, kamikaze and swarm attack scenarios. In this regard, while the hard-kill ‘Bhargavastra’ system,53 equipped with micro-missiles, is a valuable addition to the Indian armed forces, a soft-kill system is also necessary to deploy a wide spectrum of electromagnetic and cyber capabilities to bring drones down.
Secondly, Iran’s feats in dual-use component deployment and reverse-engineering processes, despite widespread UN-backed as well as unilateral Western sanctions, are major lessons. For India, and others, there is a notable takeaway – that domestic indigenous capability in critical components is non-negotiable.
Of course, there is a bureaucratic outcome of eminence in Tehran’s use of its history and experience. The closed-feedback loops between buyers and sellers of its drones, the quick adaptation from operational experiences, and the impetus provided by the ever-hanging sword of American or Israeli strikes – pushed the Supreme National Security Council and the IRGC to take urgent measures to scale drone operations and production. All of it is also prompted by a history of engagement in conflict with Iraq, Israel, and the US. Countries around the world must similarly find the motivation to adapt to the changing rules of warfare without necessarily needing a crisis.
